Vision Door/ Window Sensor GEN 5

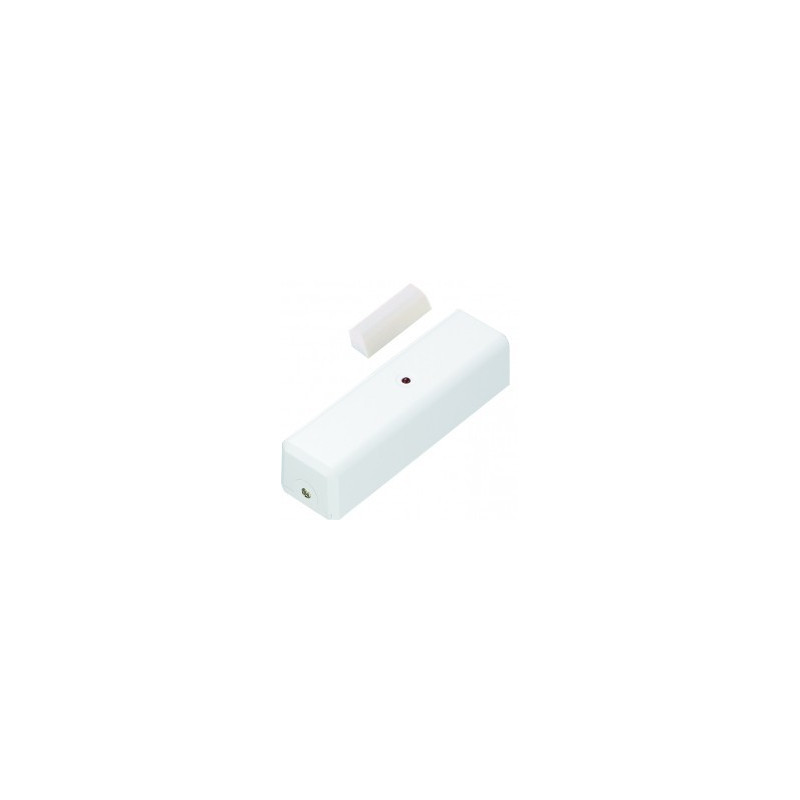

This sensor offers information whether a door or window is open or closed. The product consists of a magnetic element and the main unit. One of the parts is mounted on the moving part of the window or of the door. The other part is placed on the frame. The installation can be done with screws or double-sided tape. The device is battery-operated and therefore in sleeping mode unless an action is detected. After a programmable sleeping time the device wakes up and sends a status information. After this the unit goes back to sleeping modus. Batteries can be changed without unscrewing the device from the door or frame. The unit will give a visual warning on the device and sends a warning to the Z-Wave controller, when batteries need to be replaced. The units send information to a controller or any other associated Z-Wave device. Up to 5 devices can be controlled from this device. Two terminals allows to connection of an external dry contact in parallel to the magnetic contact. A tamper switch protects the device from removal or manipulation if used in security applications. The powerful CR123 Lithium battery lasts 3...5 years n normal operation conditions. The device supports normal Z-Wave inclusion, auto inclusion and network wide inclusion for convenient handling. Scope of delivers includes the device itself, the bracket for the magnet and the magnet itself, the battery, adhesive tape and an instruction manual. The device will then send all commands as secure commands unless the receiving device can not accept them. Then the command is send the normal way automatically.
